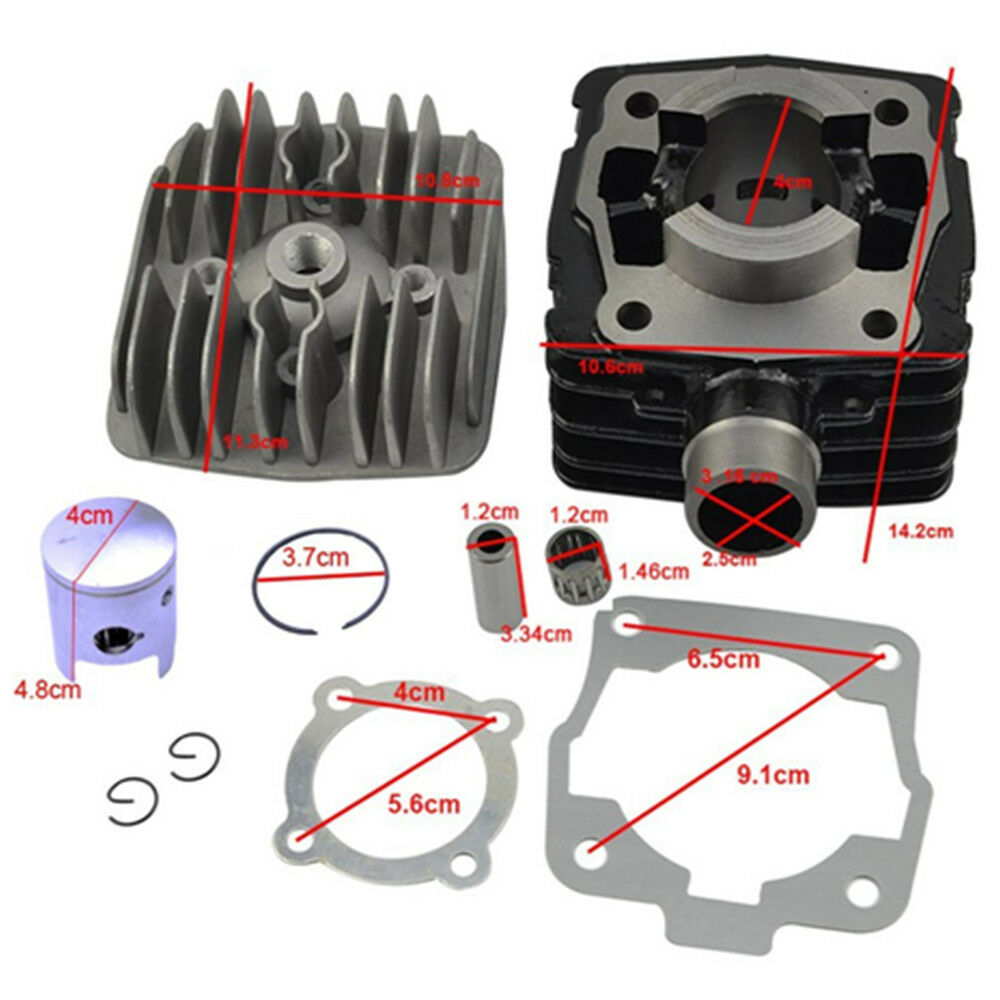

Installation Instructions for Engine Cylinder Piston Kit for 50cc Off-Road Motorbikes

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Flathead and Phillips)
3. Torque Wrench
4. Pliers
5. Allen Wrench Set
   6.Clean Cloth or Rag
6. Engine Oil (for lubrication)
7. Safety Goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and secure it using a motorcycle stand if available.
   • Put on safety goggles and gloves for protection.

2. Remove the Existing Components:

   • Use the socket wrench to remove the bolts securing the engine cover.
   • Carefully detach the existing cylinder head and piston from the engine block. Keep track of all bolts and components for reassembly.

3. Clean the Surfaces:

   • Wipe down the cylinder and engine block surfaces with a clean cloth to remove any dirt, debris, or old gasket material. Ensure a clean mating surface for the new kit.

4. Install the New Piston:

   • Apply a light coat of engine oil to the new piston and rings for lubrication.
   • Insert the piston into the cylinder with the arrow on the piston facing the exhaust port. Ensure the rings are properly aligned.

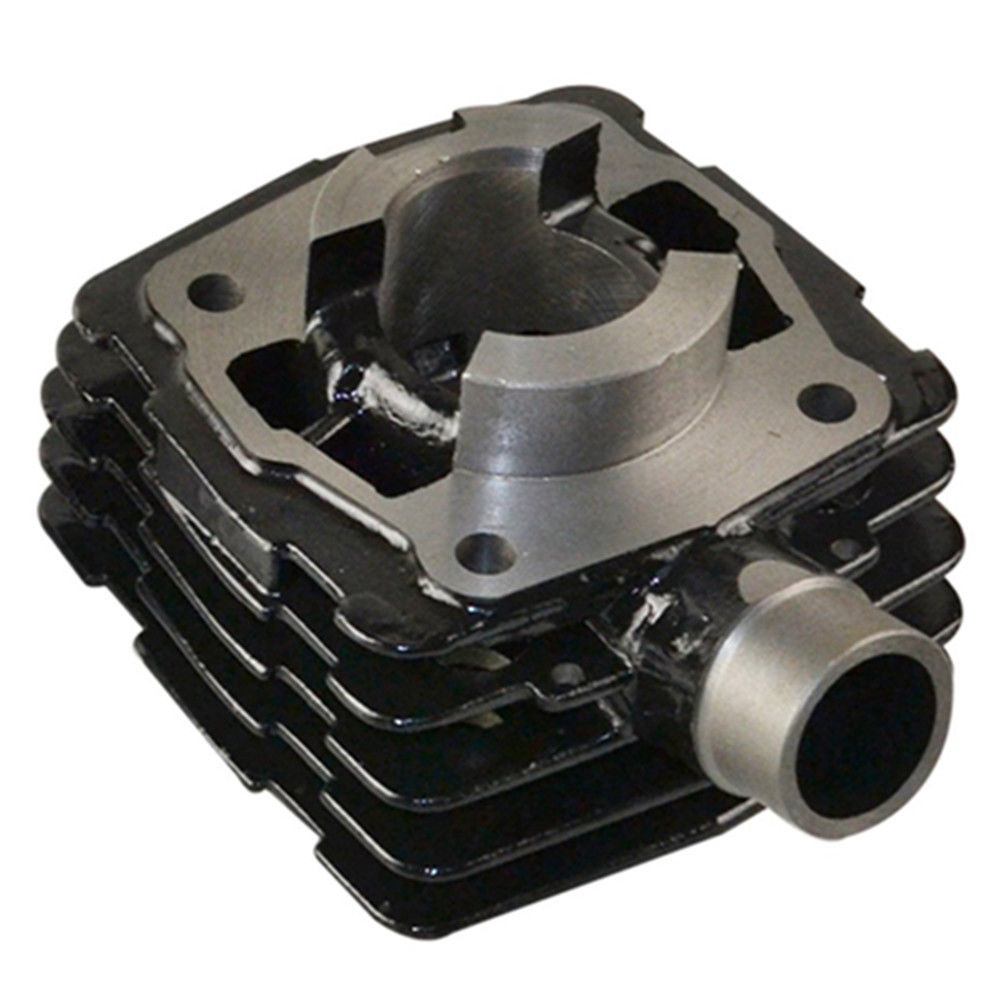

5. Attach the Cylinder:

   • Place the new cylinder over the piston and align it with the engine block.
   • Secure the cylinder using the original or new bolts, tightening them in a crisscross pattern with the torque wrench to the manufacturer's specified torque settings.

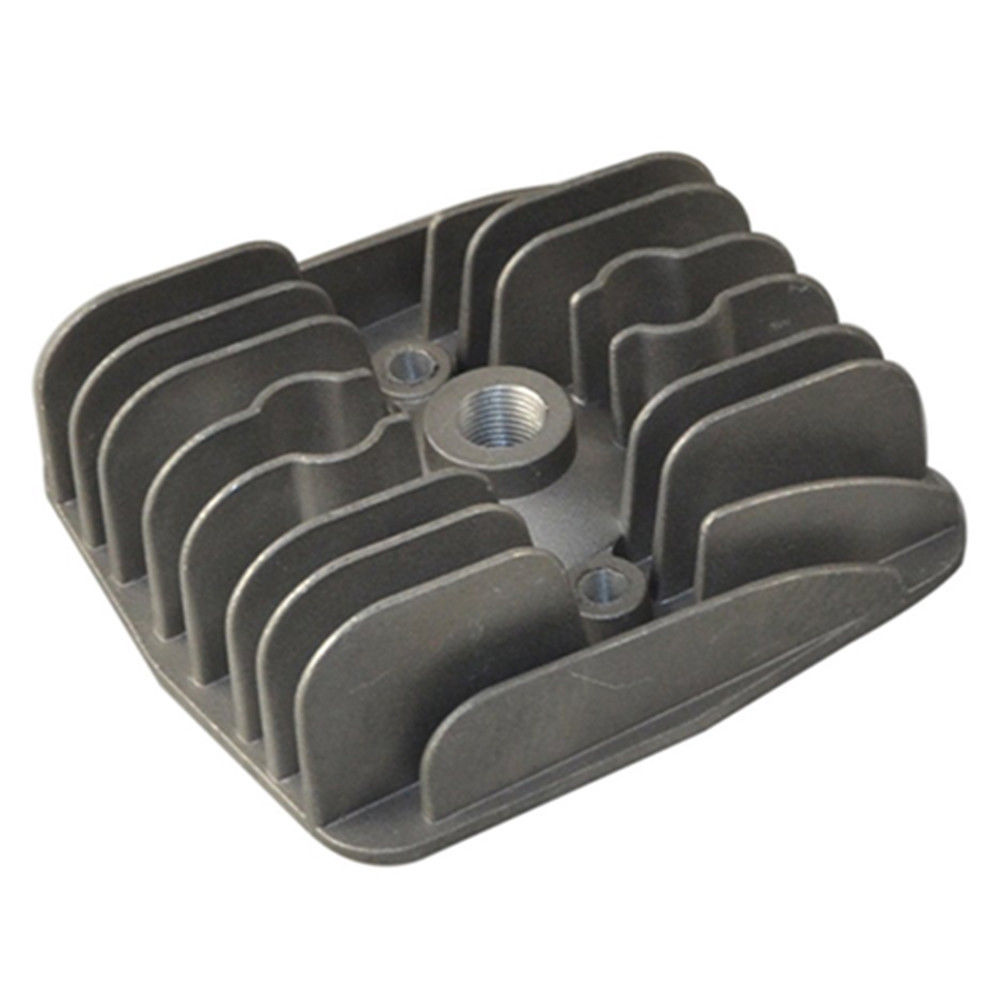

6. Reattach the Cylinder Head:

   • Position the cylinder head onto the cylinder and secure it with the bolts, again tightening them in a crisscross pattern to ensure even pressure.

7. Reinstall Engine Cover:

   • Carefully put the engine cover back on and secure it with screws, ensuring all bolts are tightened properly.

8. Final Checks:

   • Double-check all connections, ensuring everything is secure and properly aligned.
   • Check the oil level and top up if necessary before starting the engine.

9. Test Ride:

   • Start your motorcycle and allow it to idle for a few minutes.
   • Take it for a short test ride to ensure everything is functioning correctly.

Note: Always refer to the motorcycle's service manual for specific torque settings and assembly guidelines for your particular model.

Enjoy enhanced power and performance on your next off-road adventure!
